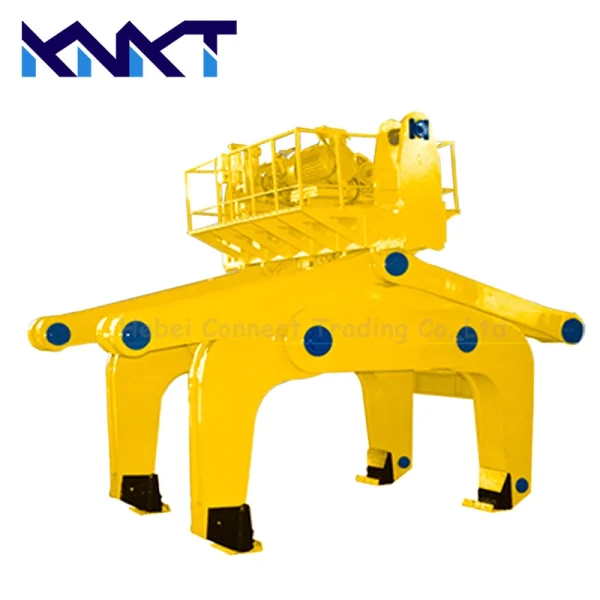

Slab Clamp – Lifting Tongs
- Lever type working principle makes it with simple structure, flexible movement, safe and reliableduring the lifting.
- Locked by the self weight of the load, open and shut the jaw by the winding control system.
- Suitable for lifting multilayer slab, which could be used in impending operation.
- Custom design is available.

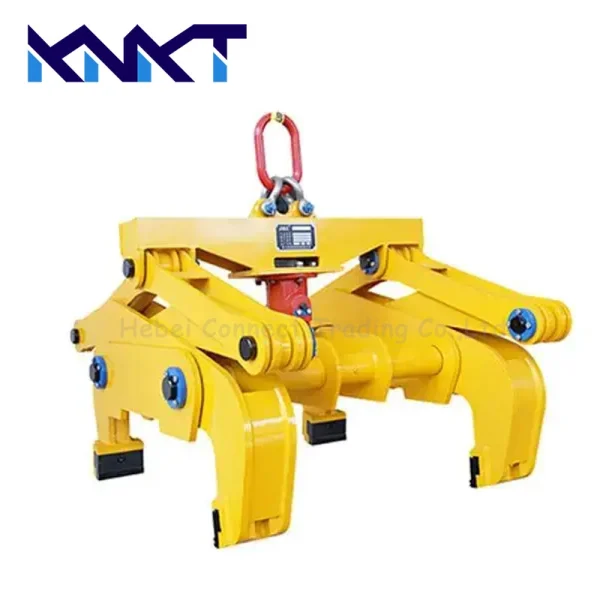

Slab Clamp Lifting Tongs
Slab Clamp, pipe lifting clamps or tongs are lifting tools specifically designed for safe and efficient lifting round or cylindrical loads (pipe, tube, bars, etc.). Whether you are lifting heavy pipes in construction, metallurgy, or industrial applications. This lifting clamp ensures optimal security and ease of use. A leg contoured to suit the load diameter engages below the center-point of the load. Where not only is the load cradled by the legs, but also securely clamped on the outside diameter.
| Working Load Limt (Ton) | Application Scope W (mm) |
Height Leg H (mm) |
Span L (mm) | Max. Dimension (mm) | |
| W | H | ||||
| 5 | 450-600 | 150 | 800 | 1200 | 1800 |
| 5 | 650-1000 | 250 | 800 | 1500 | 2300 |
| 8 | 150-450 | 250 | 1200 | 2000 | 2400 |
| 8 | 450-600 | 300 | 1200 | 1600 | 2500 |
| 8 | 450-750 | 300 | 1200 | 1600 | 2200 |
| 10 | 450-900 | 300 | 1500 | 1900 | 2600 |
| 10 | 650-1000 | 300 | 1500 | 2000 | 2600 |
| 10 | 700-1100 | 300 | 1500 | 1900 | 2600 |
| 12 | 450-750 | 300 | 2000 | 1800 | 2400 |
| 12 | 235-800 | 300 | 2000 | 2300 | 3000 |
| 16 | 600-1100 | 450 | 2500 | 2400 | 3100 |
| 16 | 850-1250 | 300 | 2500 | 2000 | 3000 |
| 20 | 800-1300 | 300 | 3000 | 2200 | 3400 |
Main Features
The material of the clamp can be reasonably selected according to the customers’ requirements. In order to meet the customers’ requirements for the self-weight of the clamp as much as possible.
Working principle of lever makes it with simple structure. Flexible movement, safe and reliable lifting.
Features: Locked by self-weight, positioned by the shutter. Opening and closing of the jaws automatically realized.
The lifting eye adopts neutral lugs, which is convenient to hook and prevent it from falling apart.
Usages: This clamp is suitable for single-hook crane, and deformation design is available.
