Single Point Mooring Hawsers -Double Braided Nylon
SPM Single Point Mooring Hawsers are engineered with a double braided nylon structure, providing superior strength, durability, and abrasion resistance.
-
Designed for harsh marine environments: Reliable performance in offshore mooring systems.
-
Excellent UV & chemical resistance: Ensures durability in extreme conditions.
-
Polyester sleeve & polyurethane coating: Added protection for longer rope lifespan.
-
Floating buoys: Keeps the rope afloat during use.
-
Customizable diameter options: Tailored to specific project needs
SPM Single Point Mooring Hawser ( Double Braided Nylon )

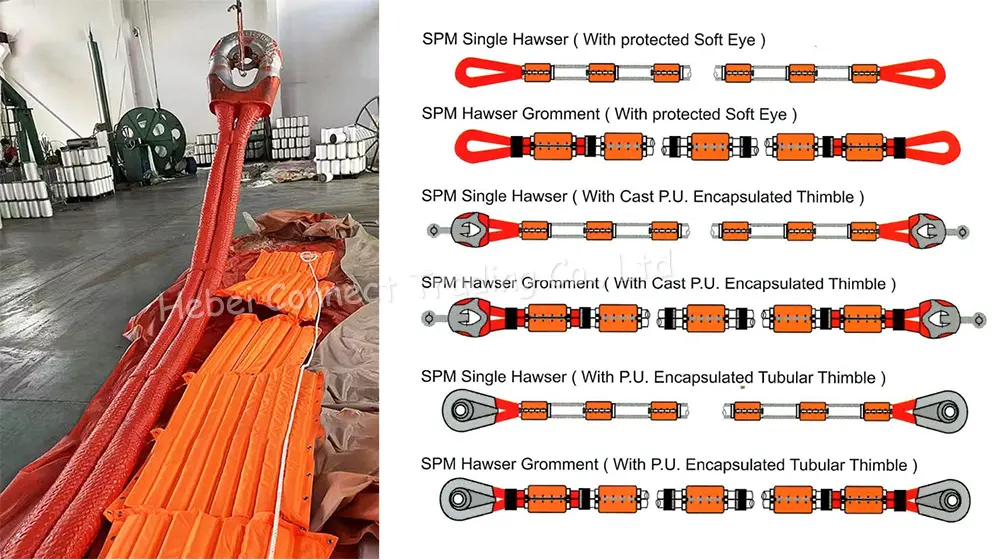

The Single Point Mooring Hawsers (SPM mooring) designed with an innovative, double-layer braided structure. Offering significantly higher strength, enhanced abrasion resistance, and a longer service life compared to traditional rope designs. This single point mooring rope features metal eye rings at both ends, which reinforced with a protective layer of polyester sleeve (at least 6mm thick). The outer layer of the rope coated with a polyurethane resin to further improve its abrasion resistance.
Additionally, floating buoys are added to the rope starting 25 feet from the eye ring, with the number of buoys determined by regulatory requirements, ensuring the rope stays afloat during usage.
Main performance
- Material: Double Braided Nylon (Polyamide) Rope
- Construction: load-bearing cores with a protective cover of polyamide.
- Application: Primarily used in marine fishing and offshore mooring systems
- Rope Colour: White with green marker for easy identification
- Approx. Spec. Density 1.14 non floating.
- Melting Point: 215℃.
- Abrasion Resistance: Excellent, making it ideal for harsh marine environments
- UV Resistance: Exceptional, ensuring durability under prolonged sun exposure
- Temperature Resistance: 80℃ max continuous.
- Chemical Resistance: Reasonable; acids, oxidizers, and solvents may affect nylon material
- Dry & wet conditions: Wet strength is approximately 5% lower than dry strength
- SPM Polyamide Hawsers manufactured in accordance with OCIMF 2000 regulations.
- Weight : ±5% Tolerance.
Single Point Mooring Hawsers Parameter Table
| Diameter | Ccircumference (Inch) |
Weight (Kgs/100M) |
Single Leg Hawser Type MBL | Grommet Type Mooring Hawser | |||
| mm | Inch | (Ton) | (kN) | (Ton) | (kN) | ||
| 80 | 3-5/32 | 10 | 406 | 132 | 1290 | 237 | 2320 |
| 88 | 3-7/16 | 11 | 506 | 167 | 1630 | 300 | 2940 |
| 96 | 3-13/16 | 12 | 585 | 191 | 1870 | 344 | 3370 |
| 104 | 4-1/8 | 13 | 699 | 222 | 2180 | 410 | 4020 |
| 112 | 4-7/16 | 14 | 798 | 163 | 2580 | 473 | 4640 |
| 120 | 4-3/4 | 15 | 914 | 198 | 2920 | 537 | 5260 |
| 128 | 5-1/6 | 16 | 1031 | 335 | 3280 | 603 | 5910 |
| 136 | 5-3/8 | 17 | 1164 | 382 | 3750 | 688 | 6740 |
| 144 | 5-11/16 | 18 | 1316 | 429 | 4210 | 773 | 7580 |
| 152 | 6 | 19 | 1490 | 478 | 4680 | 860 | 8430 |
| 160 | 6-5/16 | 20 | 1624 | 526 | 5160 | 947 | 9280 |
| 168 | 6-5/8 | 21 | 1785 | 574 | 5620 | 1033 | 10120 |
| 176 | 6-15/16 | 22 | 1986 | 641 | 6280 | 1153 | 11300 |
| 184 | 7-1/4 | 23 | 2165 | 693 | 6790 | 1248 | 12230 |
| 192 | 7-9/16 | 24 | 2351 | 741 | 7260 | 1334 | 13070 |
| 200 | 7-7/8 | 25 | 2554 | 811 | 7940 | 1459 | 14300 |
Manufacturing and Quality Control
SPM mooring ropes are crucial in offshore operations, particularly in marine fishing, oil and gas industries, and other marine logistics. They are specifically designed to withstand extreme conditions such as high UV exposure, chemical influences, and abrasive contact with hard surfaces like steel or concrete.
Our SPM ropes are meticulously crafted in accordance with such as OCIMF 2000 guidelines, ensuring that each rope meets international standards for performance and safety. The production process includes thorough testing for tensile strength, abrasion resistance, and environmental factors such as UV and temperature resistance.
