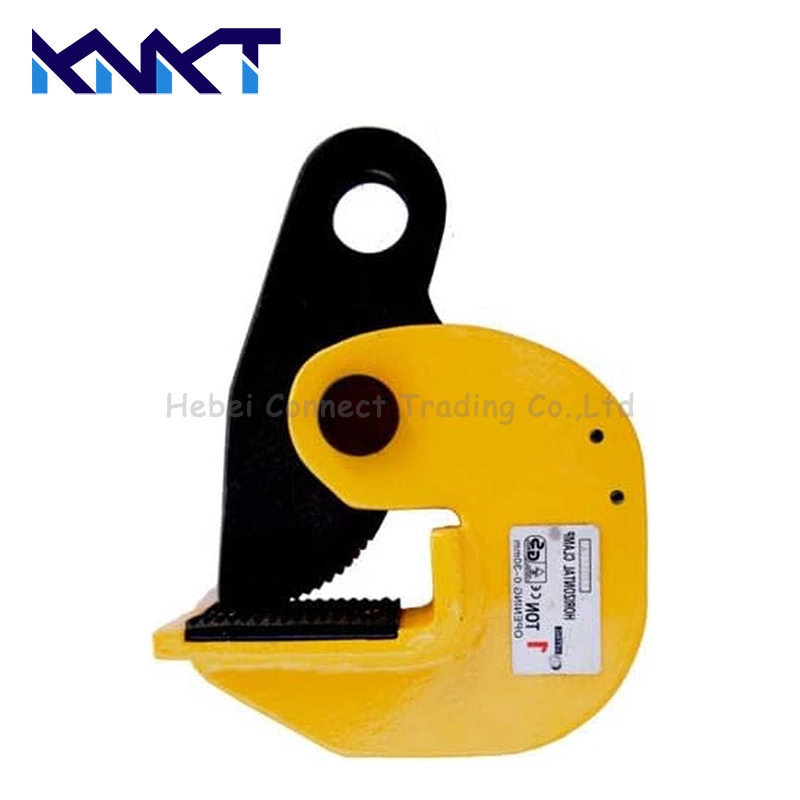

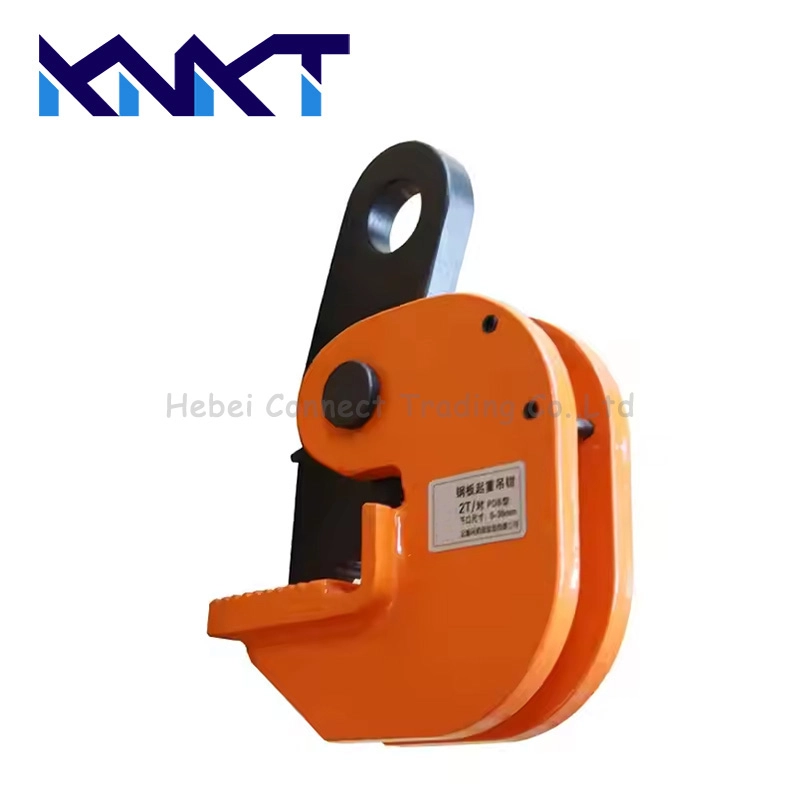

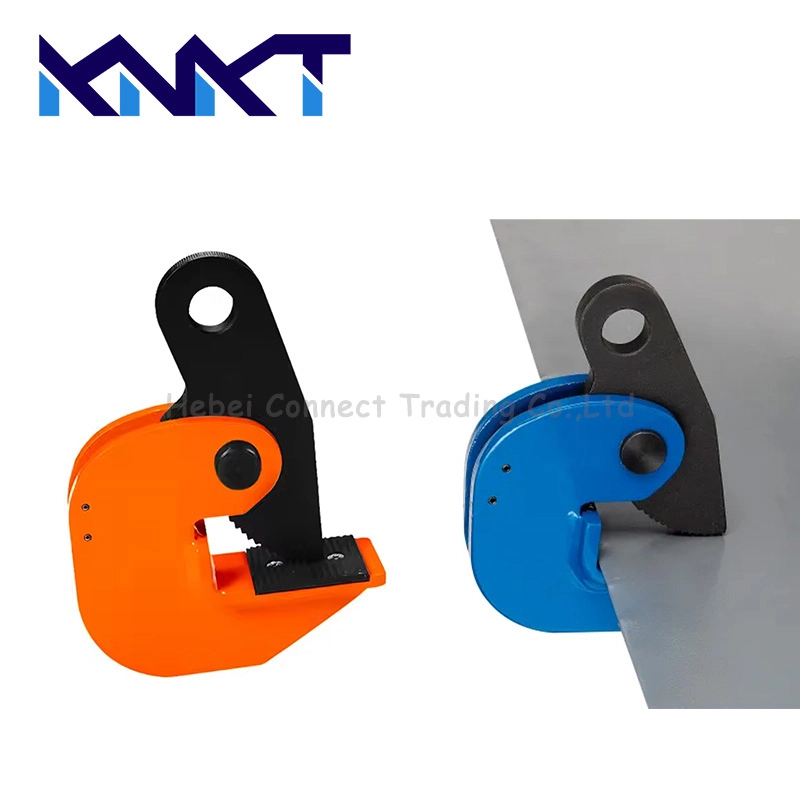

Plate Lifting Clamp Horizontal
Our Horizontal Plate Clamp for lifting is a clamp designed to safely lifting and move plate in the horizontal position. Heavy-duty steel construction for years of reliable use to ensure safety.
| Capacity | 1 Ton to 10 Ton |
|---|---|
| Material | High quality alloy steel |
| Application | Horizontal lifitng of steel plate |
Plate Lifting Clamp
Our horizontal plate lifting clamp perfectly designed to safely lifting plate material, such as steel plate, in horizontal positions. The tough quality welded body can withstand your handling lifting operations easily. With its heavy-duty steel construction, this horizontal plate clamp will last you a lifetime.

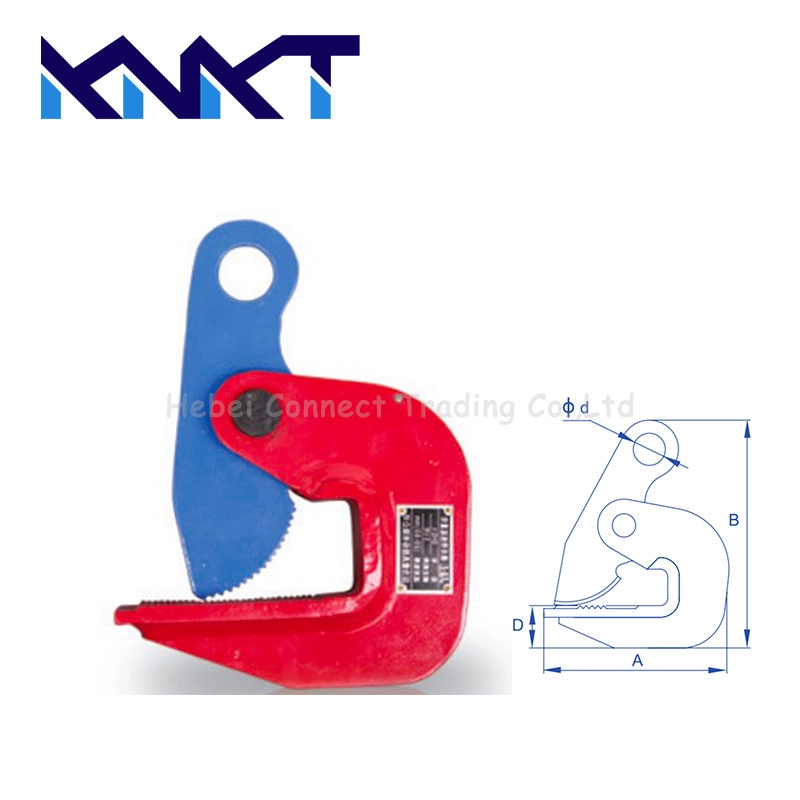

| Working Load Limit (Ton/Pair) | Steel Plate Thickness | Dimension (mm) | Weight (Kg) | |||||
| A | B | C | D | t | Φd | |||
| 2 | 1~20 | 127 | 156 | 56 | 30 | 16 | 22 | 2.12 |
| 3 | 1~30 | 152 | 190 | 64 | 31 | 18 | 28 | 3.4 |
| 5 | 20~60 | 228 | 293 | 70 | 54 | 20 | 34 | 8.5 |
| 8 | 50~100 | 277 | 375 | 86 | 59 | 25 | 40 | 16.2 |
| 10 | 60~125 | 306 | 433 | 86 | 66 | 25 | 50 | 20.2 |
Features
- Plate clamp for lifting used for horizontal lift and move heavy plate material. Such as steel plate.
- The rated load refers to the maximum load allowed to be lifted when the lifting clamps are used in pairs.
- When the steel plate is long, add a balance beam.
- The proof test load is 2 times of the working load limit, breaking load is 4 times of working load limit.
- Please read the manual carefully before use.
- For more information or quotes, contact us now!
