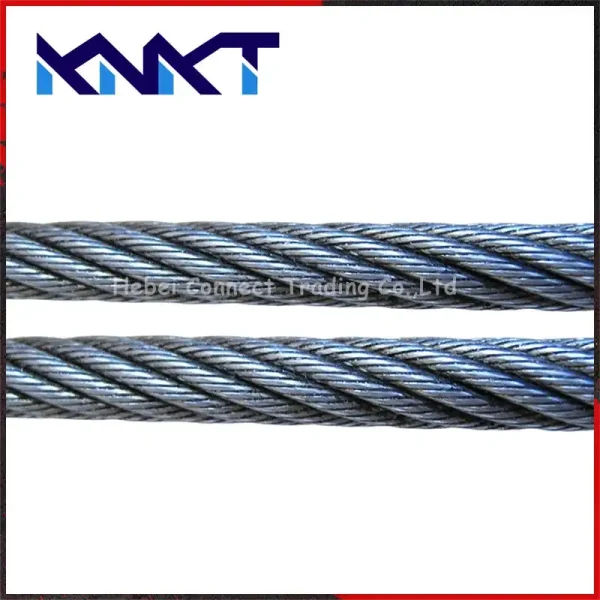

6×K19 6×K36 Compacted Steel Wire Rope
Compacted steel wire rope refers to the wire rope which has undergone a special process. In order to increases the contact area of all strands.
Rope Structure | 6×K19 6×K36 IWRC FC Wire Rope |
---|---|
Strength Grade | 1570, 1670, 1770, 1870, 1960, 2160 |
Rope Diameter | 10mm to 60mm |
Applications | Hoisting rope for vertical shafts, rotary drilling rig, excavating machinery, ship crane etc. |
Main Features Of Compacted Steel Wire Rope
Compacted steel wire rope features of high strength, flexibility, and durability. Accordingly, these kind of ropes undergoing the special design compacting process. Therefore, it increases the contact area of all strands. At the same time, becoming a denser and more robust structure.
1.High breaking strength. By the time, very stabile rope construction with good fatigue properties.
2.Very high resistance against flattening and wear.
3.Wear-resistant, anti-seismic and stable in operation at high speed.
4.Due to the good corrosion resistance, so it can working in the harsh environment of various harmful media.
5.Good softness, suitable for traction, pulling, binding and other purposes.
Specifications
Rope Diameter (mm) |
Rope Reference Weight (kg/100m) |
Rope Grade | ||||||||||||
1570 | 1670 | 1770 | 1870 | 1960 | 2160 | |||||||||
Steel Wire Rope Minimum Breaking Force (kN) | ||||||||||||||
FC | SC | FC | SC | FC | SC | FC | SC | FC | SC | FC | SC | FC | SC | |
10 | 42.5 | 46.5 | 58.6 | 65.2 | 62.3 | 69.3 | 66 | 73.5 | 69.8 | 77.6 | 73.1 | 81.3 | 80.6 | 89.6 |
12 | 61.2 | 67 | 84.3 | 93.8 | 89.7 | 99.8 | 95.1 | 106 | 100 | 112 | 105 | 117 | 116 | 129 |
14 | 83.3 | 91.1 | 115 | 128 | 122 | 136 | 129 | 144 | 137 | 152 | 143 | 159 | 158 | 176 |
16 | 109 | 119 | 150 | 167 | 159 | 177 | 169 | 188 | 179 | 199 | 187 | 208 | 206 | 230 |
18 | 138 | 151 | 190 | 211 | 202 | 225 | 214 | 288 | 226 | 251 | 237 | 264 | 261 | 290 |
20 | 170 | 186 | 234 | 261 | 249 | 277 | 264 | 294 | 279 | 310 | 292 | 325 | 322 | 359 |
22 | 206 | 225 | 283 | 315 | 301 | 335 | 320 | 356 | 338 | 376 | 354 | 394 | 390 | 434 |
24 | 245 | 268 | 337 | 375 | 359 | 399 | 380 | 423 | 402 | 447 | 421 | 469 | 464 | 516 |
26 | 287 | 314 | 396 | 440 | 421 | 469 | 446 | 497 | 472 | 525 | 494 | 550 | 545 | 606 |
28 | 333 | 365 | 459 | 511 | 488 | 543 | 518 | 576 | 547 | 608 | 573 | 638 | 632 | 703 |
30 | 383 | 419 | 527 | 586 | 561 | 624 | 594 | 661 | 628 | 698 | 658 | 732 | 725 | 807 |
32 | 435 | 476 | 600 | 667 | 638 | 710 | 676 | 752 | 714 | 795 | 749 | 833 | 825 | 918 |
34 | 491 | 538 | 677 | 753 | 720 | 801 | 763 | 849 | 806 | 897 | 845 | 940 | 931 | 1040 |
36 | 551 | 603 | 758 | 844 | 807 | 898 | 856 | 952 | 904 | 1010 | 947 | 1050 | 1040 | 1160 |
Application
Cranes: Compact construction provides greater strength and resistance to bending fatigue.
Offshore and marine: For use in mooring lines, tow lines and riser tensioning systems.
Mining: In mining operations where heavy loads lifting and transporting. Due to the strength and durability such as transport hoist ropes etc.
Oil and Gas Industry: Using in drilling operations, lifting equipment. As well as various offshore applications due to their sturdiness.
Construction: In construction applications such as tower cranes and ropeways. Besides, using to lift heavy materials and equipment safely and efficiently.
