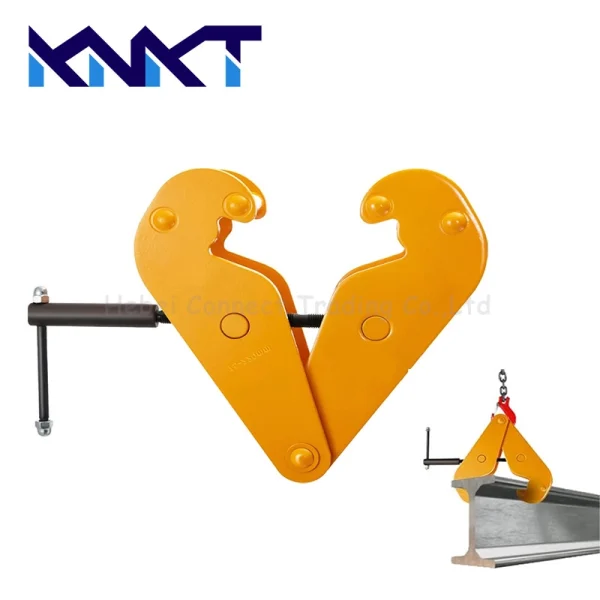

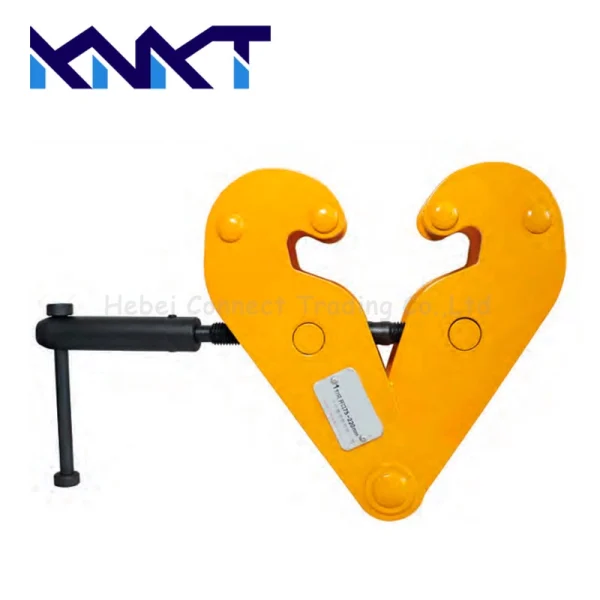

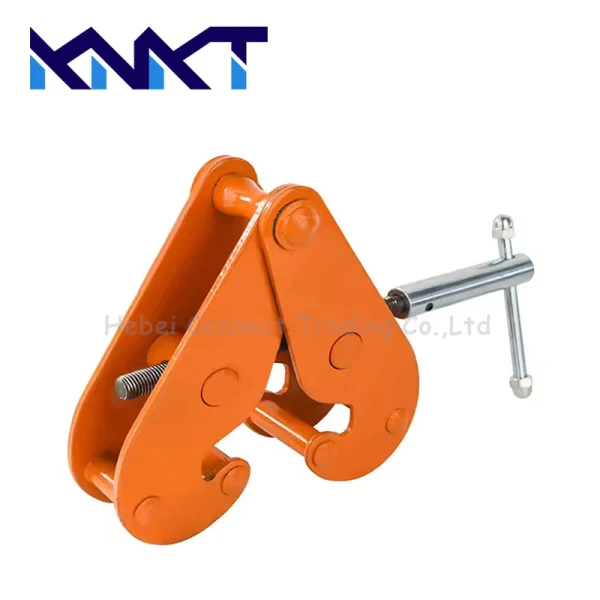

Clamps, Beam Lifting Clamp
Beam clamps is a popular specialised lifting clamp offer safe and efficient. Especially lifting for a wide range of beam sections and eliminate the need for slings and chokers.
| Capacity | 1Ton to 10Ton |
|---|---|
| Material | Making of Low-carbon high grade alloy structural steel |
| Application | Provides a quick and versatile rigging point for hoisting equipment, pulley blocks or loads. |

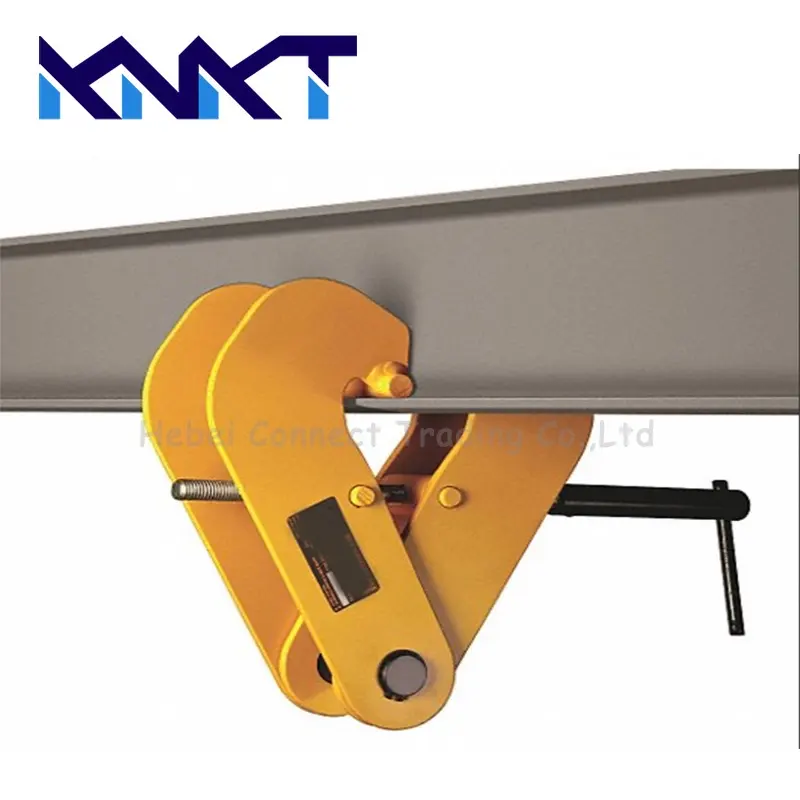

Beam Lifting Clamps
Beam Lifting Clamp is a specialized lifting and rigging equipments used to safely lift and handle structural beams, girders. As well as similar long, heavy materials in construction, manufacturing and other industries. These clamps designed to attach to the beam securely. Such as I-beam and H-beam clamps. Allowing it to lifted and transported by a crane or other lifting equipment. Widely used in the construction of buildings, bridges, and other large infrastructure projects.
| Capacity (ton) |
1T | 2T | 3T | 5T | |
| Testing Load (kN) |
19.8 | 39.2 | 58.8 | 98 | |
| Steel Plate Thickness (mm) |
75-200 | 75-200 | 80-320 | 80-320 | |
| Main Dimension (mm) |
A | 75 | 75 | 80 | 80 |
| B | 59 | 72 | 97 | 111 | |
| C | 182 | 182 | 230 | 230 | |
| D | 4 | 6 | 8 | 10 | |
| E | 24 | 24 | 28 | 32 | |
| Unit Weight (kg) |
3.8 | 6.1 | 8 | 11 | |
Main Features
- Beam Lifting Clamp Working Load Limit or Capacity: From 1Ton to 10Ton.
- Tested load to 2 times the working load limit (test certificate available).
- Designed for lifting, pulling, or as an anchor point of lifitng beams.
- Easy to install and operate. Equal opening and closing of both jaws for simple and quick assembly.
- Can also attached upside down and used as a temporary lifting point.
